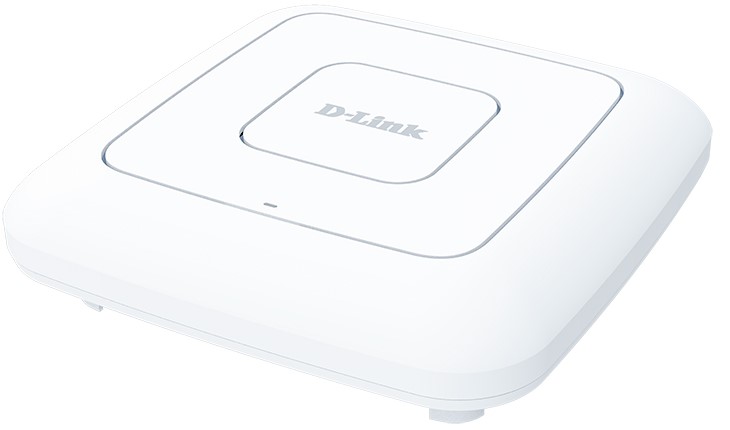

ACCESS POINT D-Link DAP-600P Wireless AC2600 Wave 2 MU-MIMO Dual Band W/POE

Be the first to review this item

SKU 11160

501.07 ₪

excl. VAT plus shipping

Delivery time: Available

Add to cart

Add to List

Compare

Questions?

Email a friend

Description
Reviews

Description

Hardware Processor • MT7621AT (880MHz dual core) RAM • 128MB DDR3 SDRAM Flash • 16MB SPI Interfaces • 10/100/1000BASE-T WAN port with PoE support • 10/100/1000BASE-T LAN port LEDs • POWER / WLAN • INTERNET • LAN Buttons • RESET button to restore factory default settings Antenna • Four internal dual band antennas (3dBi gain) MIMO • 4 x 4 MU-MIMO Power connector • Power input connector (DC) Software Operation Modes • Access point • Router WAN connection types • PPPoE • IPv6 PPPoE • PPPoE Dual Stack • Static IPv4 / Dynamic IPv4 • Static IPv6 / Dynamic IPv6 • PPPoE + Static IP (PPPoE Dual Access) • PPPoE + Dynamic IP (PPPoE Dual Access) • PPTP/L2TP + Static IP • PPTP/L2TP + Dynamic IP Network functions • DHCP server/relay • Advanced configuration of built-in DHCP server • Stateful/Stateless mode for IPv6 address assignment IPv6 prefix delegation • Automatic obtainment of LAN IP address (for access point/repeater/client modes) • DNS relay • Dynamic DNS • Static IPv4/IPv6 routing • IGMP Proxy • RIP • Support of UPnP IGD • Support of VLAN • WAN ping respond • Support of SIP ALG • Support of RTSP • WAN failover • Autonegotiation of speed duplex mode and flow control/Manual speed and duplex mode setup for each Ethernet port • Built-in UDPXY application Firewall functions • Network Address Translation (NAT) • Stateful Packet Inspection (SPI) • IPv4/IPv6 filter • MAC filter • URL filter • DMZ • Virtual servers • Built-in Yandex.DNS web content filtering service • Built-in SkyDNS web content filtering service VPN • IPsec/PPTP/L2TP/PPPoE pass-through • PPTP/L2TP tunnels • IPsec tunnels Transport/Tunnel mode IKEv1/IKEv2 support DES encryption NAT Traversal Support of DPD (Keep-alive for VPN tunnels) Management and monitoring • Local and remote access to settings through SSH/TELNET/WEB (HTTP/HTTPS) • Bilingual web-based interface for configuration and management (Russian/English) • Notification on connection problems and auto redirect to settings • Firmware update via web-based interface • Automatic notification on new firmware version • Saving/restoring configuration to/from file • Support of logging to remote host • Automatic synchronization of system time with NTP server and manual time/date setup • Ping utility • Traceroute utility • TR-069 client • SNMP agent (SNMPv2/v3) • Schedules for filters rules automatic reboot and enabling/disabling wireless network • Automatic upload of configuration file from ISP's server (Auto Provision) Wireless Module Parameters Standards • IEEE 802.11a/n/ac • IEEE 802.11b/g/n Frequency range The frequency range depends upon the radio frequency regulations applied in your country • 2400 ~ 2483.5MHz • 5150 ~ 5350MHz • 5650 ~ 5850MHz Wireless connection security • WEP • WPA/WPA2 (Personal/Enterprise) • МАС filter • WPS (PBC/PIN) Advanced functions • Super Mesh function • “Client” function (access point mode) Wireless network client Wireless network repeater • “Client” function (router mode) WISP repeater • WMM (Wi-Fi QoS) • Information on connected Wi-Fi clients • Advanced settings • Smart adjustment of Wi-Fi clients • Guest Wi-Fi / support of MBSSID • Limitation of wireless network rate • Periodic scan of channels automatic switch to least loaded channel • Support of 802.11ac (5GHz) and 802.11n (2.4GHz) TX Beamforming • Wider bandwidth (up to 160MHz) • Autonegotiation of channel bandwidth in accordance with environment conditions (20/40 Coexistence) • Support of STBC Wireless connection rate1 • IEEE 802.11a: 6 9 12 18 24 36 48 and 54Mbps • IEEE 802.11b: 1 2 5.5 and 11Mbps • IEEE 802.11g: 6 9 12 18 24 36 48 and 54Mbps • IEEE 802.11n (2.4GHz): 6.5–600Mbps (MCS0–MCS30) to 800Mbps (QAM256) • IEEE 802.11n (5GHz): from 6.5 to 600Mbps (from MCS0 to MCS30) • IEEE 802.11ac (5GHz): from 6.5 to 1732Mbps (from MCS0 to MSC9) Transmitter output power The maximum value of the transmitter output power depends upon the radio frequency regulations applied in your country • 802.11a (typical at room temperature 25 °C) 17dBm at 6 54Mbps • 802.11b (typical at room temperature 25 °C) 17dBm at 1 11Mbps • 802.11g (typical at room temperature 25 °C) 17dBm at 6 54Mbps • 802.11n (typical at room temperature 25 °C) 17dBm at MCS0~6 16dBm at MCS7 • 802.11ac (typical at room temperature 25 °C) 17dBm at MCS0~6 16dBm at MCS7 15dBm at MCS8~9 Receiver sensitivity • 802.11a (typical at PER < 10% (1000-byte PDUs) at room temperature 25 °C) -82dBm at 6Mbps -81dBm at 9Mbps -79dBm at 12Mbps -77dBm at 18Mbps -74dBm at 24Mbps -70dBm at 36Mbps -66dBm at 48Mbps -65dBm at 54Mbps • 802.11b (typical at PER = 8% (1000-byte PDUs) at room temperature 25 °C) -90dBm at 1Mbps -90dBm at 2Mbps -88dBm at 5.5Mbps -86dBm at 11Mbps • 802.11g (typical at PER < 10% (1000-byte PDUs) at room temperature 25 °C) -82dBm at 6Mbps -81dBm at 9Mbps -79dBm at 12Mbps -77dBm at 18Mbps -74dBm at 24Mbps -70dBm at 36Mbps -66dBm at 48Mbps -65dBm at 54Mbps • 802.11n (typical at PER = 10% (1000-byte PDUs) at room temperature 25 °C) HT20 -82dBm at MCS0 -79dBm at MCS1 -77dBm at MCS2 -74dBm at MCS3 -70dBm at MCS4 -66dBm at MCS5 -65dBm at MCS6 -64dBm at MCS7 HT40 -79dBm at MCS0 -76dBm at MCS1 -74dBm at MCS2 -71dBm at MCS3 -67dBm at MCS4 -63dBm at MCS5 -62dBm at MCS6 -61dBm at MCS7 • 802.11ac (typical at PER = 10% (1000-byte PDUs) at room temperature 25 °C) HT20 -82dBm at MCS0 -79dBm at MCS1 -77dBm at MCS2 -74dBm at MCS3 -70dBm at MCS4 -66dBm at MCS5 -65dBm at MCS6 -64dBm at MCS7 -56dBm at MCS8 HT40 -79dBm at MCS0 -76dBm at MCS1 -74dBm at MCS2 -71dBm at MCS3 -67dBm at MCS4 -63dBm at MCS5 -62dBm at MCS6 -61dBm at MCS7 -56dBm at MCS8 -54dBm at MCS9 HT80 -76dBm at MCS0 -73dBm at MCS1 -71dBm at MCS2 -68dBm at MCS3 -64dBm at MCS4 -60dBm at MCS5 -59dBm at MCS6 -58dBm at MCS7 -53dBm at MCS8 -51dBm at MCS9 Modulation schemes • 802.11a: BPSK QPSK 16QAM 64QAM with OFDM • 802.11b: DQPSK DBPSK DSSS CCK • 802.11g: BPSK QPSK 16QAM 64QAM with OFDM • 802.11n: BPSK QPSK 16QAM 64QAM 256QAM with OFDM • 802.11ac: BPSK QPSK 16QAM 64QAM up to 256QAM with OFDM Physical Parameters Dimensions • 213 x 213 x 38 mm (8 x 8 x 1.5 in) Operating Environment Power • 48V 0.5A or 802.3af PoE (16W) • External DC power adapter 12V/1.5A (not included in the delivery package) Temperature • Operating: from 0 to 40 °C • Storage: from -20 to 65 °C Humidity • Operating: from 10% to 90% (non-condensing) • Storage: from 5% to 95% (non-condensing)
