POWER AC adapter input 100-240V ~ 50/60Hz 0.8A AC adapter output 12V ⎓ 2A HARDWARE FEATURES Ports 2 * LAN/WAN Gigabit Ethernet Ports 1 * USB 2.0 Port (reserved) 1 * Power Port Button 1 Reset button on the underside External Power Supply 12 V/2 A Dimensions Φ5.7 in. x 1.8 in. (Φ144 mm × 46 mm) Antenna Type 8 internal antennas per Deco unit WIRELESS FEATURES Wireless Standards IEEE 802.11 ac

/a 5 GHz IEEE 802.11 b/g

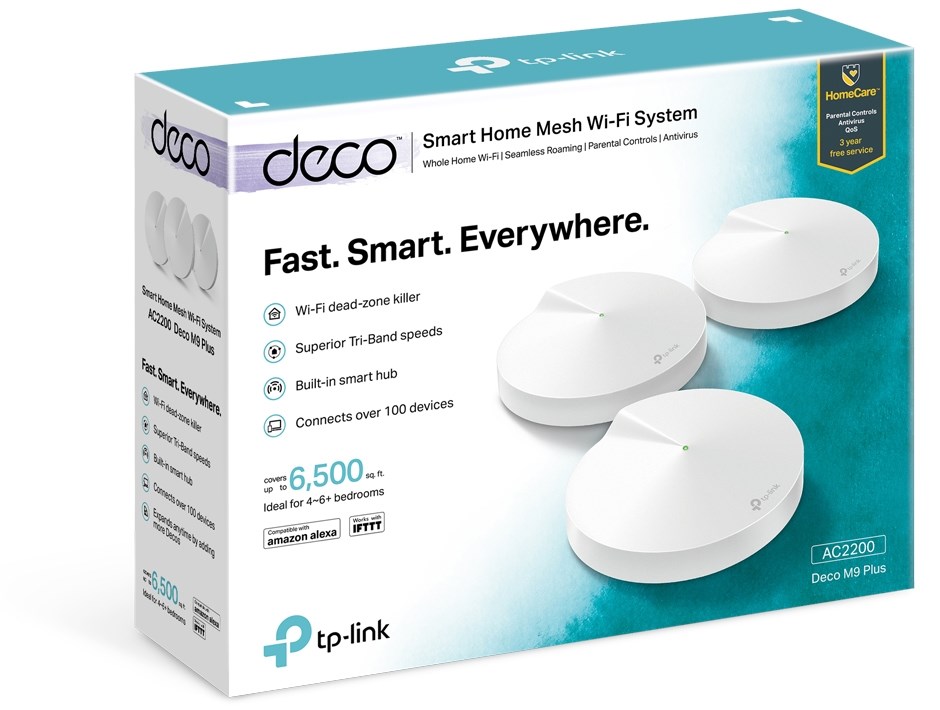

2.4 GHz Bluetooth 4.2 ZigBee HA1.2 Frequency 2.4 GHz and 5 GHz Signal Rate 867 Mbps at 5 GHz (1) 867 Mbps at 5 GHz (2) 400 Mbps at 2.4 GHz Transmit Power FCC: <30 dBm CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz) Wireless Security WPA-PSK/WPA2-PSK Advanced Functions ● Router/ Access Point Mode ● Optional Ethernet Backhaul ● TP-Link Mesh Technology: MU-MIMO Auto Path Selection Self-Healing AP Steering Band Steering Beamforming SOFTWARE FEATURES Quality of Service WMM WAN Type Dynamic IP/Static IP/PPPoE Management Local Management Remote Management DHCP Server Client Firewall Security SPI Firewall Protocols Supports IPv4 and IPv6 Advanced Features Parental Controls 3-Year Free Built-In Antivirus QoS (Quality of Service) Reporting Assisted Setup Works with Alexa & IFTTT Automation (for smart home devices) Guest Network 2.4 GHz guest network * 1 5 GHz guest network * 1 OTHERS Package Contents ●Deco M9 Plus (3-pack): 3 Deco units 1 RJ45 Ethernet Cable 3 Power Adapters ●Deco M9 Plus (2-pack): 2 Deco units 1 RJ45 Ethernet Cable 2 Power Adapters ●Deco M9 Plus (1-pack): 1 Deco unit 1 RJ45 Ethernet Cable 1 Power Adapter Smartphone/Tablet Requirements iOS 8.0 or later Android 4.3 or later Bluetooth 4.2 or later Environment Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
