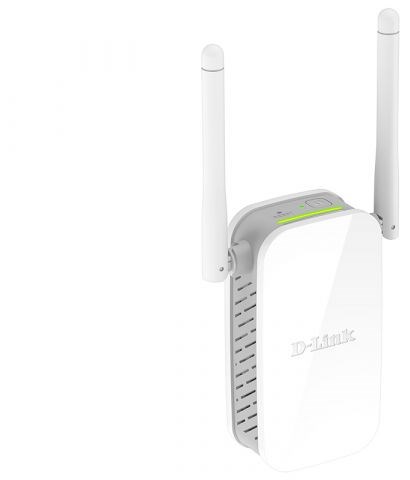

Hardware Processor • MT7628NN (580MHz) RAM • 64MB DDR2 SDRAM Flash • 8MB SPI Interfaces • 10/100BASE-TX LAN port LEDs • POWER/WPS • Wi-Fi Signal Strength Buttons • WPS button to set up wireless connection • RESET button to restore factory default settings Antenna • Two external non-detachable antennas (2 dBi) MIMO • 2 x 2 Power connector • CEE 7/16 plug for AC power supply Software Network functions • DHCP server • Automatic obtainment of LAN IP address • Advanced configuration of built-in DHCP server • DNS relay Management • Local and remote access to settings through TELNET/WEB (HTTP/HTTPS) • Bilingual web-based interface for configuration and management (Russian/English) • Firmware update via web-based interface • Automatic notification on new firmware version • Saving/restoring configuration to/from file • Support of logging to remote host • Automatic synchronization of system time with NTP server and manual time/date setup • Ping utility • Traceroute utility Wireless Module Parameters Standards • IEEE 802.11b/g/n Frequency range • 2400 ~ 2483.5MHz Wireless connection security • WEP • WPA/WPA2 (Personal/Enterprise) • МАС filter • WPS (PBC/PIN) Advanced functions • Support of client mode • WMM (Wi-Fi QoS) • Information on connected Wi-Fi clients • Advanced settings • Support of MBSSID Wireless connection rate • IEEE 802.11b: 1 2 5.5 and 11Mbps • IEEE 802.11g: 6 9 12 18 24 36 48 and 54Mbps • IEEE 802.11n:  from 6.5 to 300Mbps (from MCS0 to MCS15) Transmitter output power   The maximum value of the transmitter output power depends upon the radio frequency regulations applied in your country • 802.11n (typical at room temperature 25 °C) 15dBm (+/-1.5 dB) Receiver sensitivity • 802.11n (typical at PER = 10% (1000-byte PDUs) at room temperature 25 °C) HT20 -82dBm at MCS0/8 -79dBm at MCS1/9 -77dBm at MCS2/10 -74dBm at MCS3/11 -70dBm at MCS4/12 -66dBm at MCS5/13 -65dBm at MCS6/14 -64dBm at MCS7/15 HT40 -79dBm at MCS0/8 -76dBm at MCS1/9 -74dBm at MCS2/10 -71dBm at MCS3/11 -67dBm at MCS4/12 -63dBm at MCS5/13 -62dBm at MCS6/14 -61dBm at MCS7/15 Physical Parameters Dimensions (L x W x H) • 51 x 49 x 98 mm (2 x 1.91 x 3.85 in) Weight • 97 g (0.21 lb) Operating Environment Power • Input: 110 to 240 V AC 50/60 Hz Temperature • Operating: from 0 to 40 °C • Storage: from -20 to 70 °C Humidity • Operating: from 10% to 90% (non-condensing) • Storage: from 5% to 90% (non-condensing) Delivery Package • Extender DAP-1325
