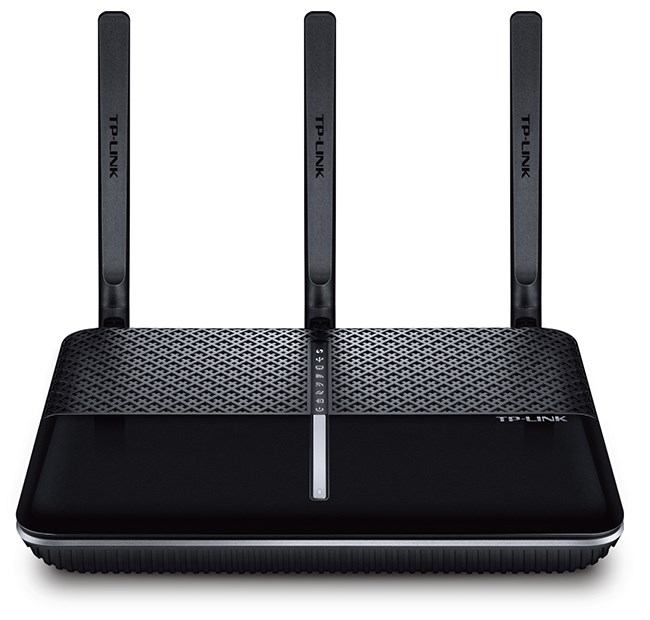

FEATURES: - Superfast Wi-Fi – 300Mbps (2.4GHz) and 1300Mbps (5GHz) speeds are ideal for online gaming HD streaming and large file downloads - Superior Range – Three detachable antennas provide stable wireless connections and optimal coverage - Versatile Connectivity – With DSL EWAN and USB ports the Archer VR600 is fully compatible with DSL connections fiber/cable access and 3G/4G USB dongles - Beamforming Technology – Improves wireless range and performance on 5GHz band - Tether App – TP-LINK Tether provides the easiest way to access and manage the router on your iOS and Android devices       SPECIFICATIONS:   Interface: - 3 10/100/1000Mbps RJ 45 WAN Ports - 1 10/100/1000Mbps RJ 45 LAN/WAN Ports - 1 RJ11 Port - 2 USB 2.0 Ports   Buttons: - WPS Button - LED Button - Wireless On/Off Buttons(2.4GHz & 5GHz) - Power On/Off Button   External Power Supply: - 12V/2A   IEEE Standards: - IEEE 802.3 - IEEE 802.3u - 802.3ab   VDSL2 Standards: - ITU-T G.993.2 Up to 17a profile (POTS) - ITU-T G.993.5 (G.vector) - ITU-T G.998.4 (G.INP）   ADSL Standards: - Full-rate ANSI T1.413 Issue 2 - ITU-T G.992.1(G.DMT) - ITU-T G.992.2(G.Lite) - ITU-T G.994.1 (G.hs) - ITU-T G.995.1   ADSL2 Standards: - ITU-T G.992.3 (G.DMT.bis) - ITU-T G.992.4 (G.lite.bis) - ADSL2+ Standards: ITU-T G.992.5 - Antenna Type: 3 External detachable dual band antennas   Wireless Standards: - IEEE 802.11a

/ac 5GHz  - IEEE 802.11b/g

2.4GHz   Frequency: - 2.4GHz and 5GHz (Supports DFS)   Signal Rate: - 1300Mbps at 5GHz - 300Mbps at 2.4GHz   Transmit Power: - 2.4GHz <20dBm(EIRP) - 5GHz <23dBm(EIRP)   Wireless Functions: - Enable/Disable Wireless Radio - WDS Bridge - WMM  - Wireless Statistics   Wireless Security: - 64/128-bit WEP - WPA/WPA2 - WPA-PSK/WPA-PSK2 - Wireless MAC Filtering   Quality of Service: - ATM QoS - Bandwidth Control   Security: - NAT Firewall - Access Control  - IP and MAC Address Binding   Operating Modes: - VDSL/ADSL Modem Router - Wireless Router - 3G/4G Router   Management: - Web Based Configuration (HTTP) - Remote management - command Line Interface - SSL for TR-069 - SNMP v1/2c  - Web Based Firmware Upgrade - Diagnostic Tools   DHCP: - Server - Client - DHCP Client List - Address Reservation  - DHCP Relay   Port Forwarding: - Virtual Server - Port Triggering - DMZ - ALG - UPnP   Dynamic DNS: - DynDns - NO-IP   VPN Pass-Through: - PPTP - L2TP - IPSec Passthrough   Protocols: - Supports IPv4 and IPv6   ATM/PPP Protocols: - ATM Forum UNI3.1/4.0 - PPP over ATM (RFC 2364) - PPP over Ethernet (RFC2516) - IPoA (RFC1577/2225) - MER\IPoE (RFC 1483 Routed) - Bridge (RFC1483 Bridge) - PVC – Up to 8 PVCs   Advanced Functions: - Parental Control - Network Address Translation(NAT) - Port Mapping(Grouping) - Static Routing - RIP v1/v2(optional) - DNS Relay - DDNS - IGMP V1/V2/V3   USB Sharing: - Support Samba(Storage) - FTP Server - Media Server - Printer Server - 3G/4G Modem   Guest Network: - 2.4GHz Guest Network 5GHz Guest Network   IPSec VPN: - Supports up to 10 IPSec VPN tunnels   Beamforming: - 5GHz Band   APP: - Tether App   Certification: - CE RoHS   Package Contents: - AC1600 Wireless Gigabit VDSL/ADSL Modem Router Archer VR600 - External Splitter - RJ11 DSL Cable - RJ45 Ethernet Cable - Power Adapter - Quick Installation Guide   System Requirements: - Microsoft Windows 98SE NT 2000 XP Vista™ or Windows 7 8 8.1 MAC OS NetWare UNIX or Linux - Internet Explorer 11 Firefox 12.0 Chrome 20.0 Safari 4.0 or other Java-enabled browser - Cable or DSL Modem Subscription with an Internet  - Service Provider (for Internet access)   Environment: - Operating Temperature: 0℃~40℃ (32℉ ~104℉) - Storage Temperature: -40℃~70℃ (-40℉ ~158℉) - Operating Humidity: 10%~90% non-condensing - Storage Humidity: 5%~90% non-condensing   Dimensions ( W x D x H ): 216 x 164 x 36.8mm
