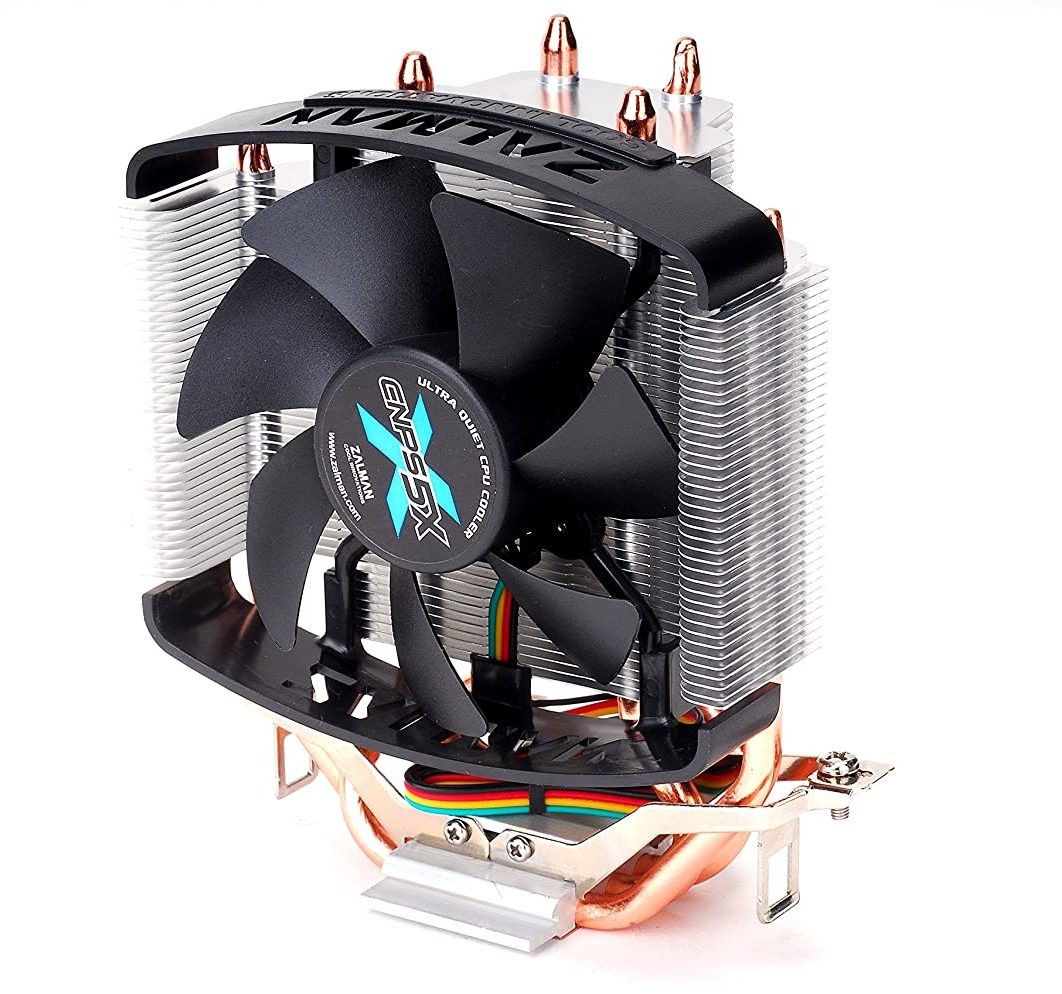

הוראות התקנה Model Brand ZALMAN Model CNPS5X Performa Details Type Fan & Heatsinks Fan Size 92mm CPU Socket Compatibility Intel LGA 1155 / 1156 / 1150 / 775 AMD AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 Bearing Type  FSB (Fluid Shield Bearing) RPM  1350 - 2700rpm +/- 10% Noise Level 20 - 32dBA +/- 15% Power Connector 4 Pin Color Gray Heatsink Material  Pure Copper Aluminum Fan Mounting Types to Heatsink Horizontal Dimensions & Weight Max CPU Cooler Height 134 mm Weight 320g Features Features Input Voltage: 12V Function: PWM Control Auto Restart Three heatpipes and aluminum fins are designed for maximum cooling while cooler setup quickly expels hot air out of the case An ultra quiet 92mm fan with FSB bearing is incorporated for minimized noise and excellent cooling The PWM (Pulse Width Modulation) Fan automatically adjusts fan speed (RPM) according to the CPU's temperature The cooler is designed with tool-less installation clip making installation convenient
